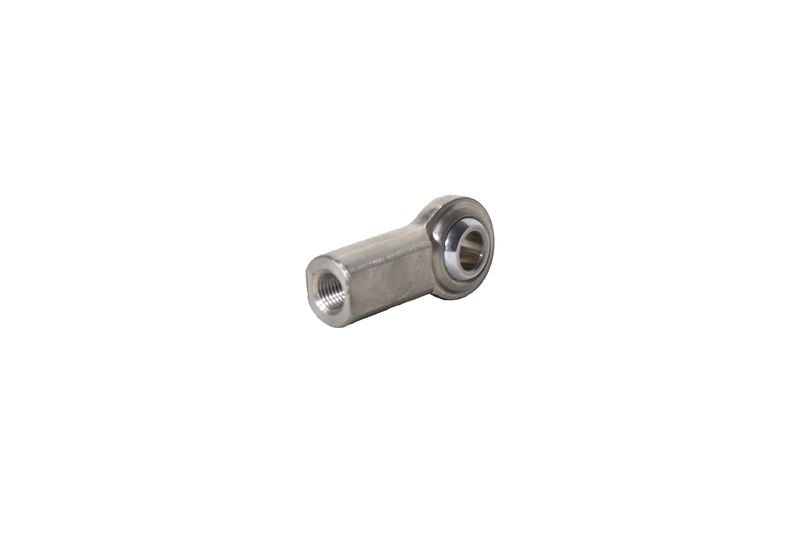

Stainless Steel Spherical Rod End - 3/8” x 3/8" (10208)

Product Name:  Female Spherical Rod End
Thread:  Female 3/8-24 x 0.937″ deep
Ball ID:  3/8″
Housing Material:  300 Series Stainless Steel
Finish:  Bright Polish
Ball Finish:  Stainless Steel
Bearing Race:  PTFE
Housing Width:  1.000″
Base of Rod End to Center of Ball:  1.625″
Ball Thickness:  0.500″
Ultimate Static Load Rating:  2,476 lbs
Common Other Names for this Product:  heim joint, rose joint
Application:  This size rod end is often used in hand or foot actuated push-pull linkages
Alternative Designs:  For lighter duty linkage applications, consider our ASFM (steel raced) series, our DXTF (nylon) series, DSTF (stainless) series, or DPF (bronze zerked) series
Metric Alternative:  The metric equivalent to this series is our DXTF series
Warning:  Regardless of a specific product's name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application.

Stainless Steel Spherical Rod End 3/8" x 3/8" (10208) is designed for industrial control cable systems, push-pull linkages and mechanical control applications requiring strength, precision and corrosion resistance. Manufactured from 300 Series stainless steel and fitted with a PTFE bearing race, this female rod end provides smooth articulation, reliable operation and extended service life in demanding environments. The 3/8"-24 UNF thread and 3/8" ball bore make it suitable for a wide range of industrial and equipment control applications.

Multiflex Australia supplies quality industrial control cable components trusted across transport, agricultural, manufacturing and specialised machinery applications. For additional rod ends, cable fittings and linkage hardware, visit our trusted online partner – Industrial and Cable Group.
