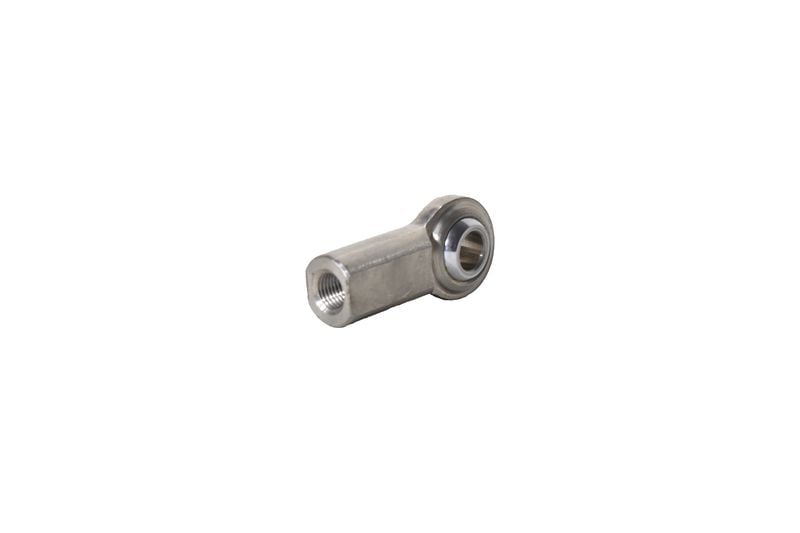

Stainless Steel Spherical Rod End - 1/2” x 1/2" (10210)

Product Name:  Female Spherical Rod End
Thread:  Female 1/2-20 x 1.187″ deep
Ball ID:  1/2″
Housing Material:  300 Series Stainless Steel
Finish:  Bright Polish
Ball Finish:  Stainless Steel
Bearing Race:  PTFE
Housing Width:  1.380″
Base of Rod End to Center of Ball:  2.125″
Ball Thickness:  0.625″
Ultimate Static Load Rating:  6,933 lbs
Common Other Names for this Product:  heim joint, rose joint
Application:  This size rod end is often used in hand or foot actuated push-pull linkages.
Alternative Designs: For lighter duty linkage applications, consider our ASFM (steel raced) series, our DXTF (nylon) series, DSTF(stainless) series, or DPF (bronze zerked) series.
Metric Alternative:  The metric equivalent to this series is our DXTF series.
Warning:  Regardless of a specific product's name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application.

Stainless Steel Spherical Rod End 1/2" x 1/2" (10210) is designed for industrial control cable systems, push-pull linkages and mechanical control applications where strength, precision and corrosion resistance are essential. Manufactured from 300 Series stainless steel and incorporating a PTFE bearing race, this female rod end delivers smooth articulation, reliable performance and extended service life in demanding environments. The 1/2"-20 UNF thread and 1/2" ball bore make it suitable for a broad range of industrial, transport and equipment control applications. The Multiflex stainless steel rod end range is commonly used in hand and foot actuated linkage systems requiring dependable operation.

Multiflex Australia supplies quality control cable components trusted across Australian industry. For additional rod ends, cable fittings and linkage hardware, visit our trusted online partner – Industrial and Cable Group.
